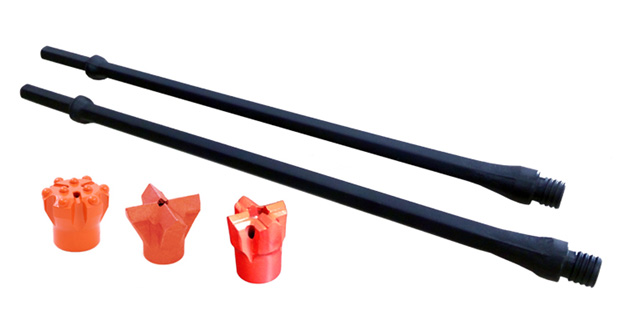

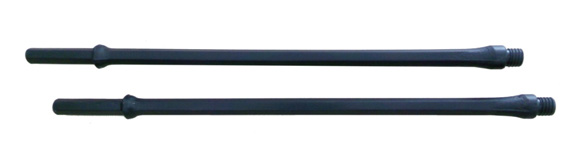

"H" thread drill rod

Shank size: 7/8" x3 1/4” and 1"x 4 1/4"
Length: 12"-144"

"H" thread drill bit

Type: TC cross bit, TC button bit, All steel bit
Size: 1 3/8"- 3"

Shank Size

Length

Weight

Part No.

inch

mm

inch

mm

lbs

kg

7/8" x 3-1/4"

Hex.22×82.5

12"

304.8

3

1.36

10220812H

18"

457.2

4

1.81

10220818H

24"

609.6

5

2.27

10220824H

30"

762

6

2.72

10220830H

36"

914.4

7

3.18

10220836H

48"

1219.2

9

4.08

10220848H

60"

1524

11

4.99

10220860H

72"

1828.8

14

6.35

10220872H

96"

2438.4

18

8.16

10220896H

120"

3048

22

9.98

102208120H

7/8" x 4-1/4"

Hex.22×108

12"

304.8

3.25

1.47

10221012H

18"

457.2

4.25

1.93

10221018H

24"

609.6

5.25

2.38

10221024H

30"

762

6.25

2.83

10221030H

36"

914.4

7.25

3.29

10221036H

48"

1219.2

9.25

4.20

10221048H

60"

1524

12

5.44

10221060H

72"

1828.8

13.25

6.01

10221072H

1" x 4-1/4"

Hex.25×108

12"

304.8

4

1.81

10251012H

18"

457.2

5

2.27

10251018H

24"

609.6

7

3.18

10251024H

30"

762

9

4.08

10251030H

36"

914.4

10

4.54

10251036H

48"

1219.2

12

5.44

10251048H

60"

1524

15

6.80

10251060H

72"

1828.8

18

8.16

10251072H

96"

2438.4

23

10.43

10251096H

120"

3048

28

12.70

102510120H

144"

3657.6

33.5

15.20

102510144H

Diameter

Weight

Part No.

inch

mm

lbs

kg

1-3/8"

35

0.5

0.23

3135HC

1-1/2"

38

0.5

0.23

3138HC

1-5/8"

41

0.6

0.27

3141HC

1-3/4"

44

0.6

0.27

3144HC

1-7/8"

48

0.8

0.36

3148HC

2"

52

0.9

0.41

3152HC

2-1/8"

54

1.06

0.48

3154HC

2-1/4"

57

1.2

0.54

3157HC

2-3/8"

60

1.32

0.6

3160HC

2-1/2"

64

1.3

0.59

3164HC

2-5/8"

67

1.59

0.72

3167HC

2-3/4"

70

1.63

0.74

3170HC

3"

76

2.1

0.95

3176HC
